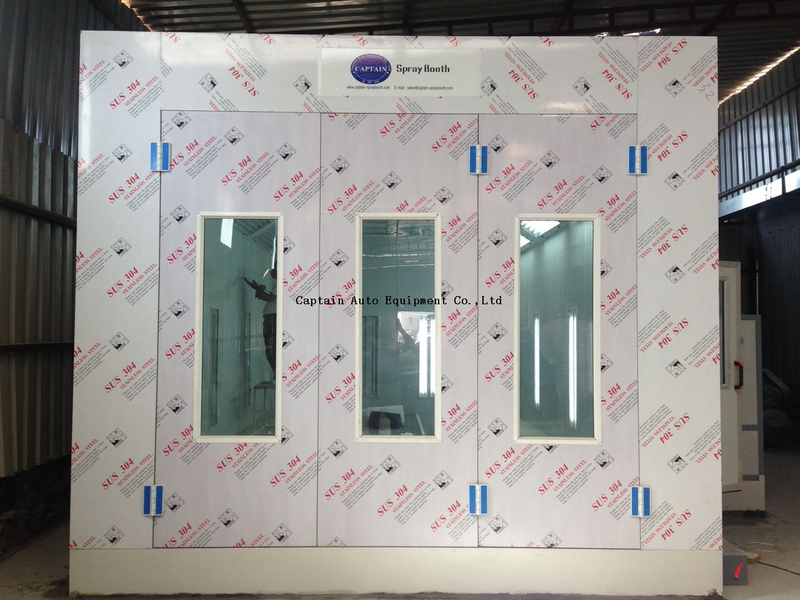

EX-YB 100R
captain
8419 8990 90
6900X3900X2700mm
full downdraft
diesel burner
2 sets 3kw centrifugal fan
no exhaust fan
32pcs LED lights
Outside Size(mm) | 7000x5350x3300 | Inside Size(mm) | 6900x3900x2650 | Front Door(mm) | 3000x2600(WxH) | Total Power | 8kw |
Basement | δ=1.0mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.8mm; 3 rows of diamond plate, 2 rows of grilles, made by 30mmx4mm flat steel, then paint. δ=2.75mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful. | ||||||
Cabin System | 50mm EPS panel, double 0.376mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. | ||||||
Ventilation System | 2x3kw YDW4.5L centrifugal fans for supplying, air capacity is 26000m3/h; 1x5.5kw YDW5.6S centrifugal fan for exhausting, air capacity is 15000m3/h. Pneumatic damper. The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with 30mm rockwool inside. | ||||||
Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=1.0mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. | ||||||
Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance≧1000Lux. 20pcsx30w side lights in vertically embedded into the wall. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. | ||||||
Heating System | Italy Riello G20 diesel burner, 200000Kcal/h. Heating exchanger is made of δ=1.5mm sus304 stainless steel by argon arc welding. | ||||||
Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist.And M type active carbon for the waste gas. | ||||||
Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. | ||||||
We supply:
1.CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Basic Draw
Also we can design the spray booth according to your need,so just tell me your needs,we can give you the best solution.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Outside Size(mm) | 7000x5350x3300 | Inside Size(mm) | 6900x3900x2650 | Front Door(mm) | 3000x2600(WxH) | Total Power | 8kw |
Basement | δ=1.0mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.8mm; 3 rows of diamond plate, 2 rows of grilles, made by 30mmx4mm flat steel, then paint. δ=2.75mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful. | ||||||
Cabin System | 50mm EPS panel, double 0.376mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. | ||||||
Ventilation System | 2x3kw YDW4.5L centrifugal fans for supplying, air capacity is 26000m3/h; 1x5.5kw YDW5.6S centrifugal fan for exhausting, air capacity is 15000m3/h. Pneumatic damper. The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with 30mm rockwool inside. | ||||||
Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=1.0mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. | ||||||
Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance≧1000Lux. 20pcsx30w side lights in vertically embedded into the wall. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. | ||||||
Heating System | Italy Riello G20 diesel burner, 200000Kcal/h. Heating exchanger is made of δ=1.5mm sus304 stainless steel by argon arc welding. | ||||||
Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist.And M type active carbon for the waste gas. | ||||||
Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. | ||||||
