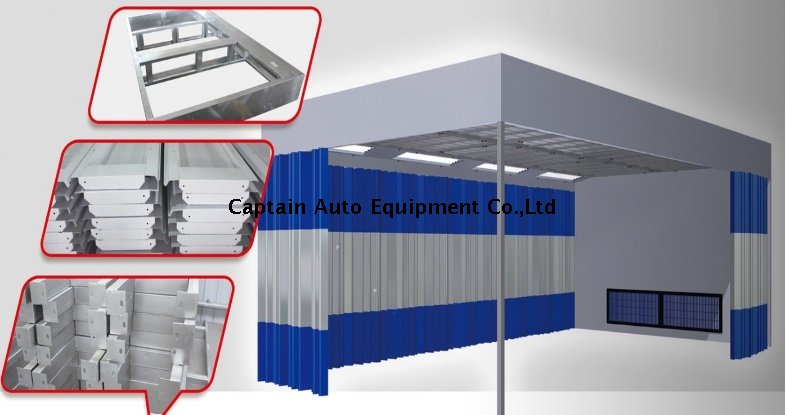

Preparation Bay for Automobile Body Preparation

A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.
D. Optional heat units are available for high production needs.
  • preparation room 01
  • captain
  • 8424 8999 90
  • 6900x3900x2700mm
  • negative pressure
  • N/A
  • natural air inlet
  • 1 set 5.5kw centrifugal fan
  • LED lights
Inside Dimension 6500x3500x2650mm(L×W×H)
Outside Dimension 7500x3600x3300mm(L×W×H)
Basement Galvanized steel, full grilles; 2pcs ramps.
Room Body 50mm thick EPS panel with double 0.326mm steel, 3 sides are equipped with 0.5mm PVC curtain.
Intake&Exhaust System Intake: 2x3kw centrufugal fans, air capacity is 26000m3/h;
Lighting System Ceiling lights: 6units×4pcs=24pcs x 36w, illuminance≧500Lux.
Purification System Prefilter and ceiling filter
Controlling System fans switch, light switch, stop, emergency stop.
Installation Way suspending hook from ceiling or steel column supporting


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !

The Captain name is recognised worldwide as the leader in Spray Booth technology and has become the number one supplier to the automotive aftermarket in the CHINA by providing tangible financial benefits to its customer.
