Lower price Australia/NZ Popular Model Spray Booth / electrical lamps model and Natural Gas Burner

All Captain’s Commercial Vehicle (CV) spray booths come with an extensive range of cutting-edge features to guarantee a consistently brilliant colour finish and rendition, which substantially reduces cycle times and huge savings in energy output and maintenance costs.
  • AS7006C
  • captain
  • 8424 8999 90
  • 6900x3900x2700
  • full downdraft , air exhaust from grate
  • diesel burner, gas burner or infrared lamps
  • 1 set 7.5kw turbo fan
  • 1 set 7.5kw turbo fan
  • LED lights

We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking ovenyou need .
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement

Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!


Inside Dimension 6900X3900X2700MM(LXWXH)
Outside Dimension 7000X5350X3400MM(LXWXH)
Main door 3-fold, 3000X2600MM(WXH) with heat insulation glass window, Stainless steel door
Personal door 1-fold, 700X2000MM(WXH) with one step. There is two sets of pressure lock
 which will automatically open when the pressure inside is over the limit
Booth System Wall panel :EPS material, tongue and groove interlock construction,
 hickness: 50mm, 0.426mm steel plate
Basement and floor:complete steel assemble, 5 rows of grids,
Build-in ramp
Lighting System Ceiling light: 4Pcs X8units=32PcsX36W, OSRAM Lamp,
 with electronic ballasts , change light tube from outside .
Glass All window and light cover by ovenproof toughened glass
Generator setting type Side upper intake air, Side bottom exhaust air, aluminum alloy frame, coated steel
Ventilation System Intake fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive,
 air capacity:28000-30000m3/h ;
Exhaust fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive,
 air capacity:28000-30000m3/h
Heating system Italian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional)
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
 highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
 Reasonable structure, saf
e and reliable, big heat exchanging area, high heat
 utilization, more than 90% heat exchanging rate
Electrical lamps model :3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw. Max temperature: 80℃
Filter system Prefilter, high efficiency filter EU5 Fine Filters, 6 pieces (ceiling filter),
 floor filter, exhaust active carbon filter
Control system Spraying, risen-temperature spraying, baking temperature, time setting,
 lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
 limited-temperature device, most of electrical spare part is import, C.E standard
Total power 16KW

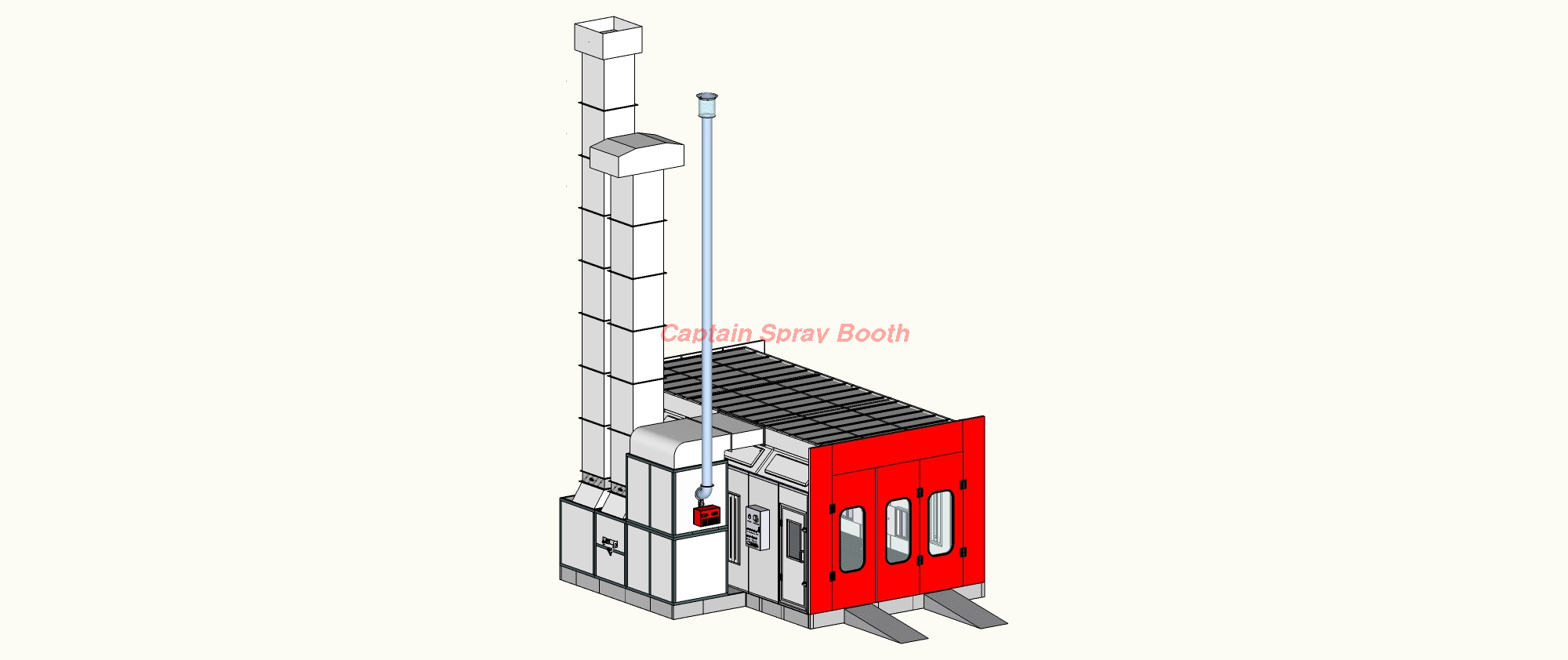

Design drawing:
Design drawing_0001

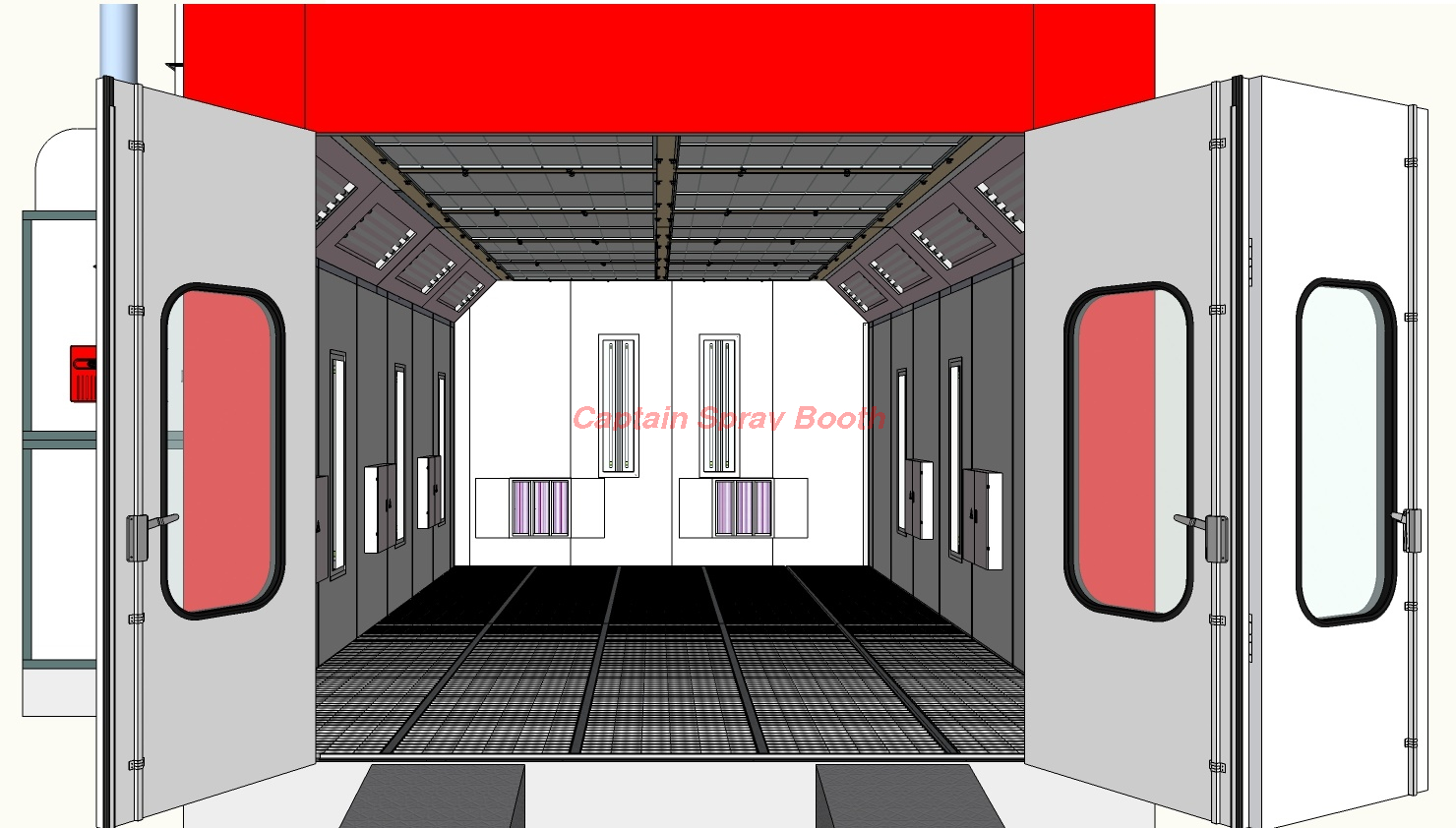

Design drawing 像_0001

2021.4-022021.4 -01Inside view:
inside view for Pneumatic uphill model
Air inlet and exhaust system :
Side view

High strength wall panel
50MM EPS wall panel 14kgm3
Stainless Steel heat exchanger
heat exchager

Control Box
control box
our production, delivery


Delivery time : after received you payment ,we will produce , for this standard model ,
the delivery time is 2-3 weeks .
Payment term: 50% TT IN ADVANCE , 50 % before delivery
After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included)
when your workers unloading the goods, If they find something damaged during transit by sea,
please take the pictures of the damage in the container and we will reissue you or give you some compensation.
(Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record)
