Large Industrial Spray Booth

For the past 25 years Captain Spraybooths have been responsible for the design, manufacture and supply of Industrial Spray Booth equipment to a diverse range of industries, scaling from small process lines to fully automated mass production paint finishing lines.
  • CPYE127501
  • Captain
  • 8419 8990 90
  • 12000x5000x5000mm
  • semi downdraft, exhaust from side wall
  • diesel burner, gas burner or infrared lamps
  • 2 sets 7.5kw turbo fan
  • 2 sets 7.5kw turbo fan
  • LED lights

For industrial spray booth, there is no standard size, every set is customized according to customer's need.

Product Description

Booth Dimension
- Internal Size(L×B×H) 12000×5000×5000mm(L×W×H)
- External Size(L×B×H) 12150×8000×5600mm(L×W×H)
Foundation and Floor
- Grid 2 rows air exhust plenum chamber
- Metal Basement Need to build the base construction , 2 rows of pits in the ground for exhaust air,
 dimension of each pit is10350×760mm((LxW),
 with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm,
 tongue and groove interlock structure, with Polystyrene(EPS) insulation inside

- 3-Folded Entrance Door
 With Safety Glass Window
1 Unit, 3800×3900 mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside
- Operator's Door With
 Safety Glass Window
1Unit, 650×1800 mm(W×H)
Lighting System
- Ceiling Lights 16Units, each 3×36 W, with electronic ballasts
- Side Lights 18Units, each 2×36W, with electronic ballasts
- Brightness >1000LUX
Filter System
- Filter Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter
- Filtering area 46M2
Ventilation System
- Intake air system
 (Fresh Air)
4×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S,
 total air capacity 65000m3/h

- Exhaust
 air system(Exhaust Air)
2×7.5KW double-intake centrifugal fans for exhaust air, with motor outside,
 belt-drive, model TAE-560H, total air capacity 50000m3

Heating System
- Heating Exchange Stainless Steel
- Heating
 Exchange Capacity
- Max. Drying
80 °C
- Heating time  8-12 min (from 20 to 60) by Drying Phase
- Heating Type (optional) RIELLO RG5S (260000 kcal/h)Diesel )2 sets
Control Box
- Control system Spraying, heat spraying, baking, time setting, lighting switch, failure indicator,
 thermostat, power supply switch, emergency stop, ampere meter, voltmeter,
 hours meter, temperature limit controller, pressure gauge. exhaust reduction
 voltage motor start

- Total power 44KW

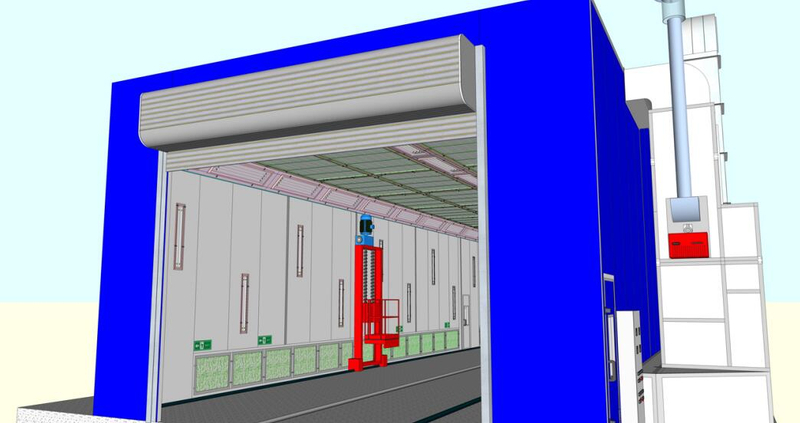

Basic Draw

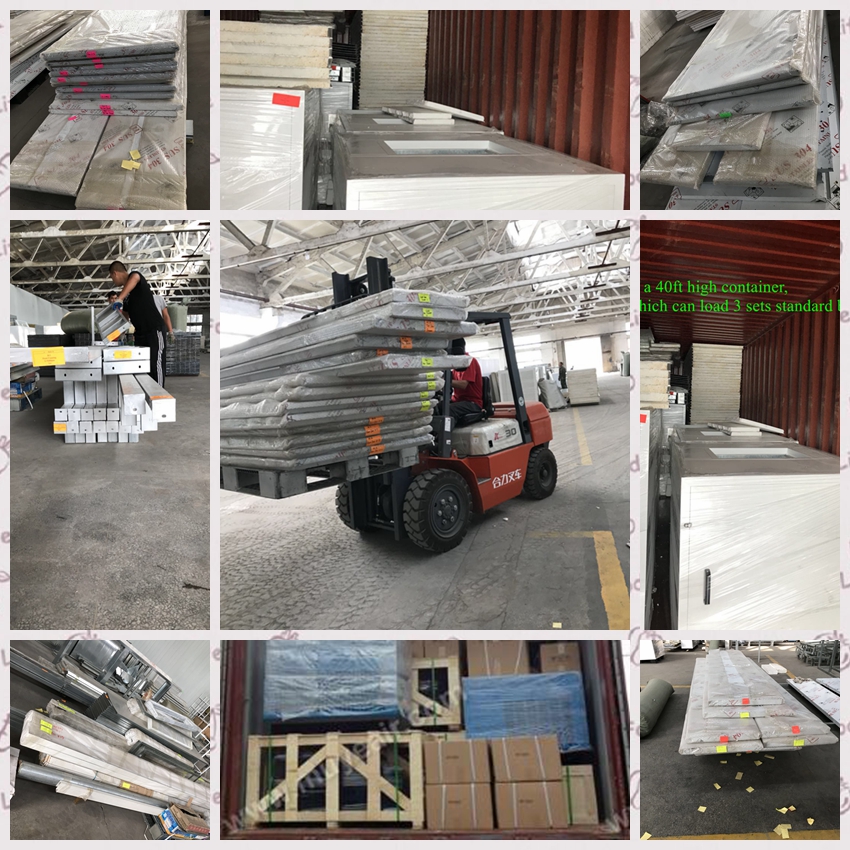

Package and delivery

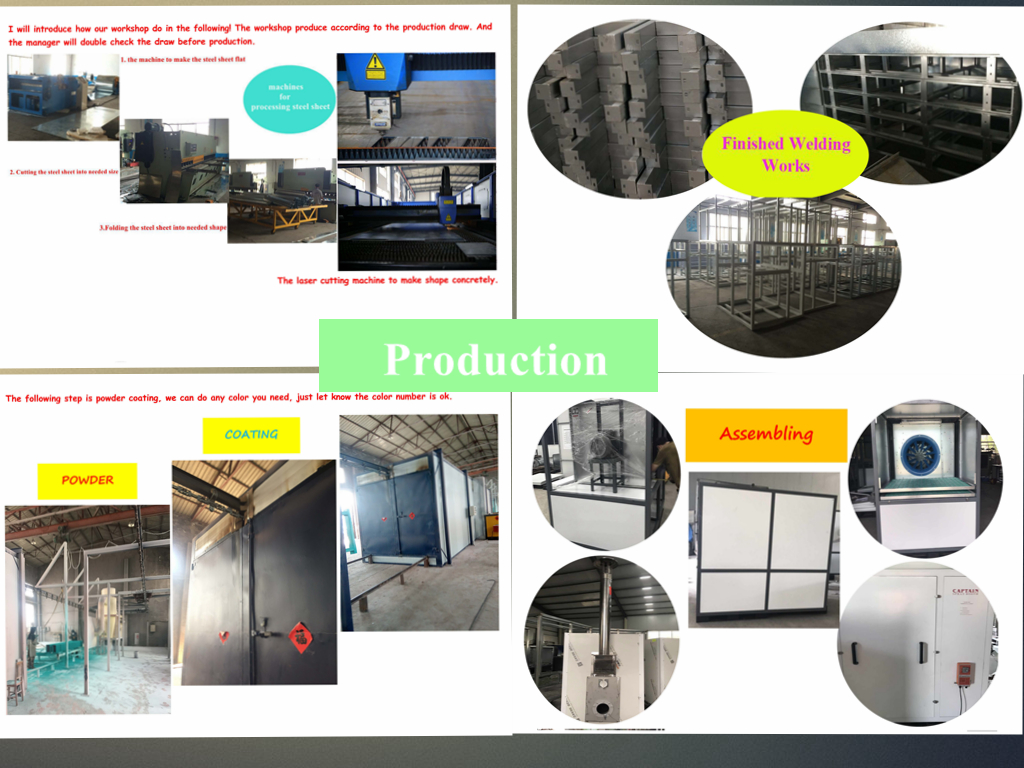

our production, delivery

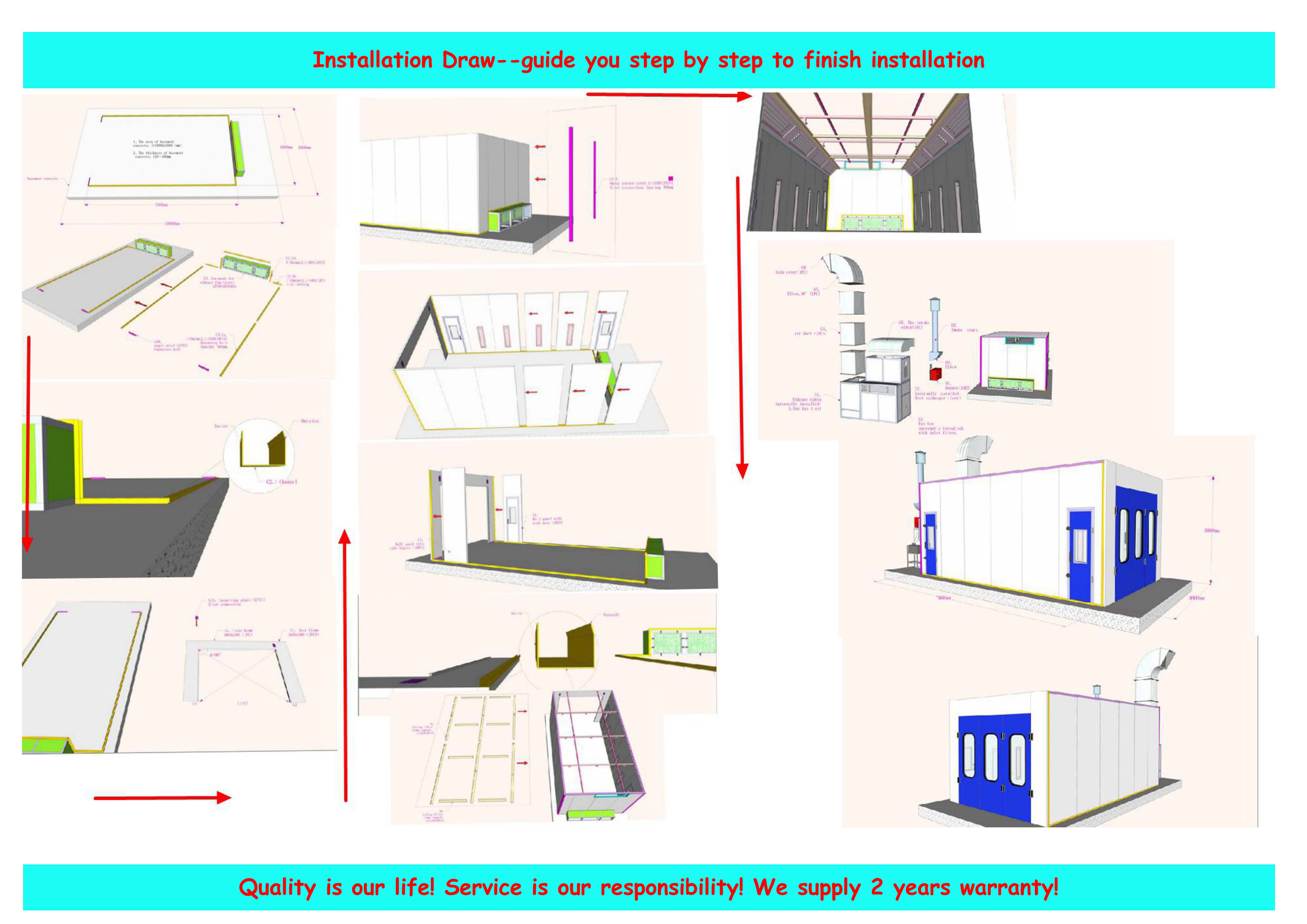

installation draw

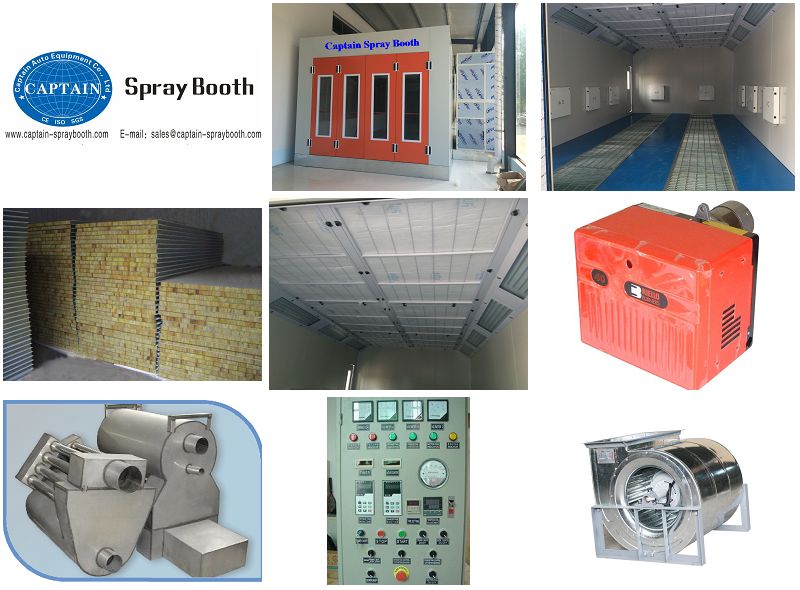

high quality parts


installed models
customer installed models

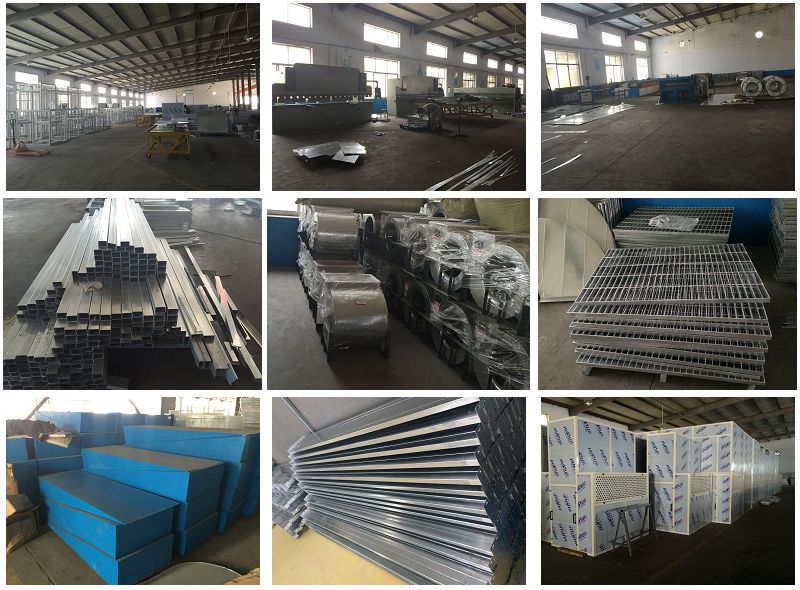

our workshop
our workshop

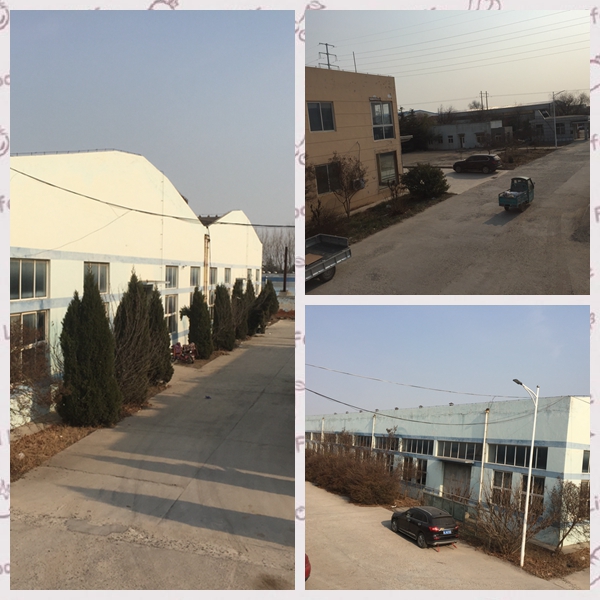

factory view

our factory

1. This paint spray booth is suitable for 9m bus.
2. Has CE certification
3. High quality, competitive price, famous brand in China.
4. OEM is available.
5. Can be produce as customer's requir.
Booth DimensionsExterior size(mm)(L)12125× (W)8400× (H)5000
Interior size (mm)(L)12000× (W)5000× (H)5000
Foundation and FloorLoading capacity of galvanized No basement, with side air collector, each side has 5 units, total 10units air collector, each unit size: (L)2000× (W)500× (H)800mm
Surface area of rear exhaust box15 m²
Metal BasementNo
Drive-in rampsNo

Wall and doorSteel wall75 mmthick EPS panel
Roof panelDouble-layer galvanized plate, with heat insulation cloth inside.
4Folded entrance door with safety glass window1 unit.
  entrance door size: (W)4000× (H)4300 mm
Operator' s door with safety glass windows2 unit, (W)800× (H)1800mm
LightingCeiling lightings12 units, each unit: 4× 36 W, total 1728W, IP54
Side lightings18units, each unit: 2× 36 W, total 1296W, IP54
Brightness> 950Lux
FiltrationPrefiltersPlate filter, G3 grade
Ceiling filtersF5 grade filter
Exhaust filtersBottom, G2 grade filter

If you have inquiry on the industrial or large booth, please send me email. I can ask our engineer to design for you accordingly! We have professional team from design to installation, you don't need to worry about anything.

Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.
