CPDE9275
Captain
8419 8990 90
9000x6000x5000mm
semi downdraft, exhaust from side wall
diesel burner, gas burner or infrared lamps
6 sets 1.5kw top fan
4 sets 3kw axial fan
LED lights
For industrial spray booth, there is no standard size, every set is customized according to customer's need.
Product Description
Booth Dimension | ||
| - Internal Size(L×B×H) | 9000×6000×5000mm(L×W×H) | |
| - External Size(L×B×H) | 9150×9000×5600mm(L×W×H) | |
| Foundation and Floor | ||
| - Grid | 2 rows air exhust plenum chamber | |
| - Metal Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is10350×760mm((LxW), with galvanized grids made by twisted steel and flat bar above | |
| Wall and Door | ||
| - Steel Wall | Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside | |
| - 3-Folded Entrance Door With Safety Glass Window | 1 Unit, 3800×3900 mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside | |
| - Operator's Door With Safety Glass Window | 1Unit, 650×1800 mm(W×H) | |
| Lighting System | ||
| - Ceiling Lights | 16Units, each 3×36 W, with electronic ballasts | |
| - Side Lights | 18Units, each 2×36W, with electronic ballasts | |
| - Brightness | >1000LUX | |
| Filter System | ||
| - Filter | Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter | |
| - Filtering area | 46M2 | |
| Ventilation System | ||
| - Intake air system (Fresh Air) | 4×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, total air capacity 65000m3/h | |
| - Exhaust air system(Exhaust Air) | 2×7.5KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-560H, total air capacity 50000m3 | |
| Heating System | ||
| - Heating Exchange | Stainless Steel | |
| - Heating Exchange Capacity | 260000Kcal/h | |
| - Max. Drying Temperature | 80 °C | |
| - Heating time | 8-12 min (from 20 to 60) by Drying Phase | |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )2 sets | |
| Control Box | ||
| - Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start | |
| - Total power | 44KW | |
Basic Draw
Production
Package and delivery
Installation
high quality parts
installed models
our workshop
factory view

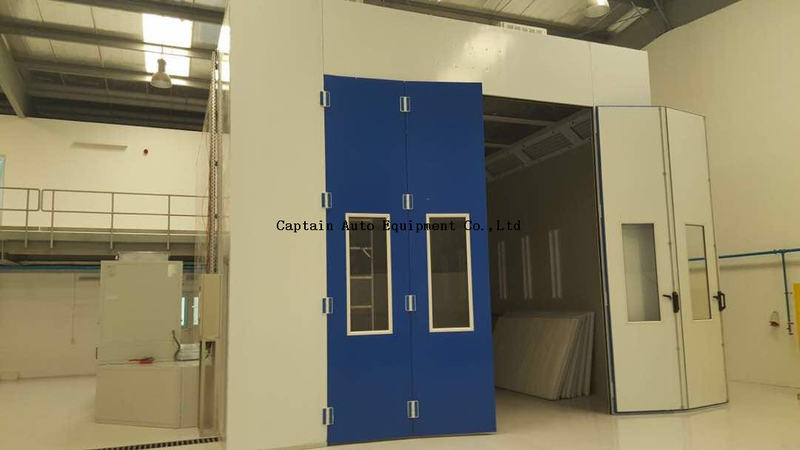

1. This paint spray booth is suitable for 9m bus.
2. Has CE certification
3. High quality, competitive price, famous brand in China.
4. OEM is available.
5. Can be produce as customer's requir.
Booth DimensionsExterior size(mm)(L)12125× (W)8400× (H)5000
Interior size (mm)(L)12000× (W)5000× (H)5000
Foundation and FloorLoading capacity of galvanized No basement, with side air collector, each side has 5 units, total 10units air collector, each unit size: (L)2000× (W)500× (H)800mm
Surface area of rear exhaust box15 m²
Metal BasementNo
Drive-in rampsNo
Wall and doorSteel wall75 mmthick EPS panel
Roof panelDouble-layer galvanized plate, with heat insulation cloth inside.
4Folded entrance door with safety glass window1 unit.
entrance door size: (W)4000× (H)4300 mm
Operator' s door with safety glass windows2 unit, (W)800× (H)1800mm
LightingCeiling lightings12 units, each unit: 4× 36 W, total 1728W, IP54
Side lightings18units, each unit: 2× 36 W, total 1296W, IP54
Brightness> 950Lux
FiltrationPrefiltersPlate filter, G3 grade
Ceiling filtersF5 grade filter
Exhaust filtersBottom, G2 grade filter
If you have inquiry on the industrial or large booth, please send me email. I can ask our engineer to design for you accordingly! We have professional team from design to installation, you don't need to worry about anything.
For industrial spray booth, there is no standard size, every set is customized according to customer's need.
Product Description
Booth Dimension | ||
| - Internal Size(L×B×H) | 9000×6000×5000mm(L×W×H) | |
| - External Size(L×B×H) | 9150×9000×5600mm(L×W×H) | |
| Foundation and Floor | ||
| - Grid | 2 rows air exhust plenum chamber | |
| - Metal Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is10350×760mm((LxW), with galvanized grids made by twisted steel and flat bar above | |
| Wall and Door | ||
| - Steel Wall | Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside | |
| - 3-Folded Entrance Door With Safety Glass Window | 1 Unit, 3800×3900 mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside | |
| - Operator's Door With Safety Glass Window | 1Unit, 650×1800 mm(W×H) | |
| Lighting System | ||
| - Ceiling Lights | 16Units, each 3×36 W, with electronic ballasts | |
| - Side Lights | 18Units, each 2×36W, with electronic ballasts | |
| - Brightness | >1000LUX | |
| Filter System | ||
| - Filter | Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter | |
| - Filtering area | 46M2 | |
| Ventilation System | ||
| - Intake air system (Fresh Air) | 4×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, total air capacity 65000m3/h | |
| - Exhaust air system(Exhaust Air) | 2×7.5KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-560H, total air capacity 50000m3 | |
| Heating System | ||
| - Heating Exchange | Stainless Steel | |
| - Heating Exchange Capacity | 260000Kcal/h | |
| - Max. Drying Temperature | 80 °C | |
| - Heating time | 8-12 min (from 20 to 60) by Drying Phase | |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )2 sets | |
| Control Box | ||
| - Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start | |
| - Total power | 44KW | |
Basic Draw
Production
Package and delivery
Installation
high quality parts
installed models
our workshop
factory view
1. This paint spray booth is suitable for 9m bus.
2. Has CE certification
3. High quality, competitive price, famous brand in China.
4. OEM is available.
5. Can be produce as customer's requir.
Booth DimensionsExterior size(mm)(L)12125× (W)8400× (H)5000
Interior size (mm)(L)12000× (W)5000× (H)5000
Foundation and FloorLoading capacity of galvanized No basement, with side air collector, each side has 5 units, total 10units air collector, each unit size: (L)2000× (W)500× (H)800mm
Surface area of rear exhaust box15 m²
Metal BasementNo
Drive-in rampsNo
Wall and doorSteel wall75 mmthick EPS panel
Roof panelDouble-layer galvanized plate, with heat insulation cloth inside.
4Folded entrance door with safety glass window1 unit.
entrance door size: (W)4000× (H)4300 mm
Operator' s door with safety glass windows2 unit, (W)800× (H)1800mm
LightingCeiling lightings12 units, each unit: 4× 36 W, total 1728W, IP54
Side lightings18units, each unit: 2× 36 W, total 1296W, IP54
Brightness> 950Lux
FiltrationPrefiltersPlate filter, G3 grade
Ceiling filtersF5 grade filter
Exhaust filtersBottom, G2 grade filter
If you have inquiry on the industrial or large booth, please send me email. I can ask our engineer to design for you accordingly! We have professional team from design to installation, you don't need to worry about anything.
