Availability: | |
---|---|
EZ-YB 100R 02
Captain
8424 8999 90
6900x3900x2700mm
full downdraft
diesel burner
2 sets 4kw centrifugal fan
1 set 5.5kw centrifugal fan
LED lights
Equipment Constituents
The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.
Main Specification:
Model NO.: | EZ-YB100R | ||||||
Outside Size(mm) | 7000x5350x3300 | Inside Size(mm) | 6900x3900x2700 | Front Door(mm) | 3000x2600(WxH) | Total Power | 8kw |
Basement | δ=1.0mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.5mm; 3 rows of diamond plate, 2 rows of grilles which is made of 30mmx4mm flat steel, then paint. δ=2.5mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful. | ||||||
Cabin System | 50mm EPS panel, double 0.326mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. | ||||||
Ventilation System | 2 set 4kw centrifugal fan for supplying, air capacity is 25000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with 30mm rockwool inside, electrical or pneumatic damper, equiped with 10N Holland electrical or pneumatic actuator. 1 set 5.5kw centrifugal fan for air exhaust, air capacity is 15000m3/h | ||||||
Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. | ||||||
Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. | ||||||
Heating System | Italy Riello G20 diesel burner, 200000Kcal/h. Heating exchanger is made of δ=1.2mm sus304 stainless steel by argon arc welding. | ||||||
Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist. | ||||||
Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. | ||||||
Optional | Wall Panel | 50mm rock wool panel, with double steel 0.376/0.426mm steel, density is >=100kgs | |||||
Side Lights | 20pcsx30w in vertically embedded into the wall. The light box is with powder coating. | ||||||
Environmental Cabin | 1x4kw centrifugal fan with floor filter and active carbon filter. in Draw-out type plate structure |

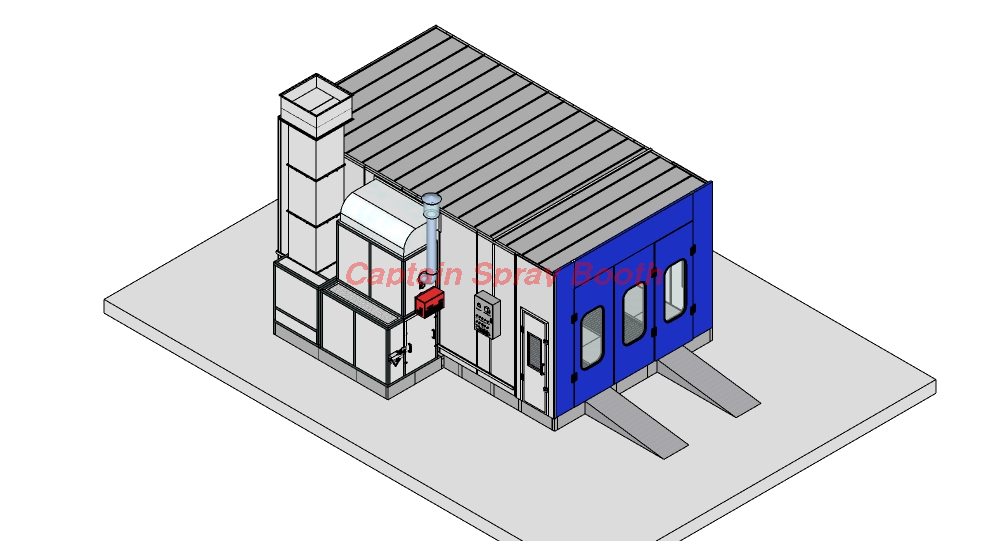

Basic Draw----we can make draw according to your need and your installation place
Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise
Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.
Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

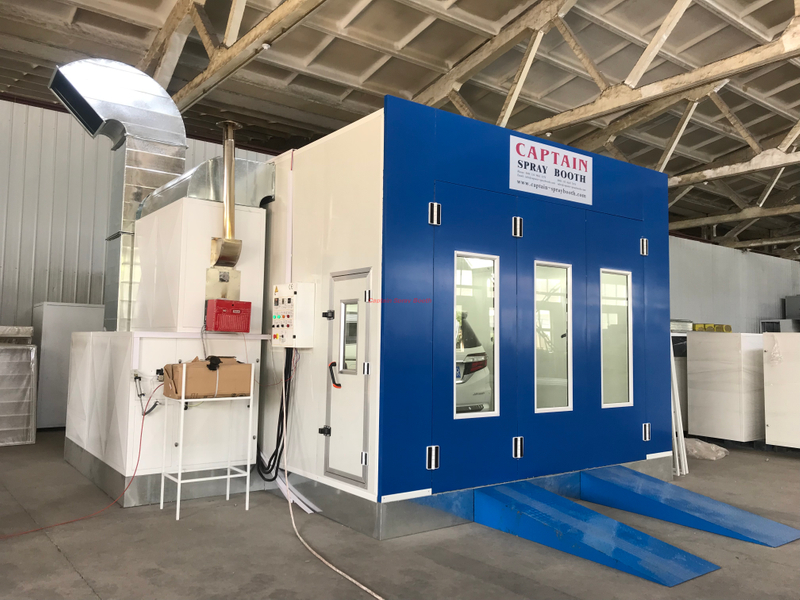

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.
Parts
High desensity wall panel, two men stand on it, it will not bend.
Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.
Our control box is with SCHNEIDER parts

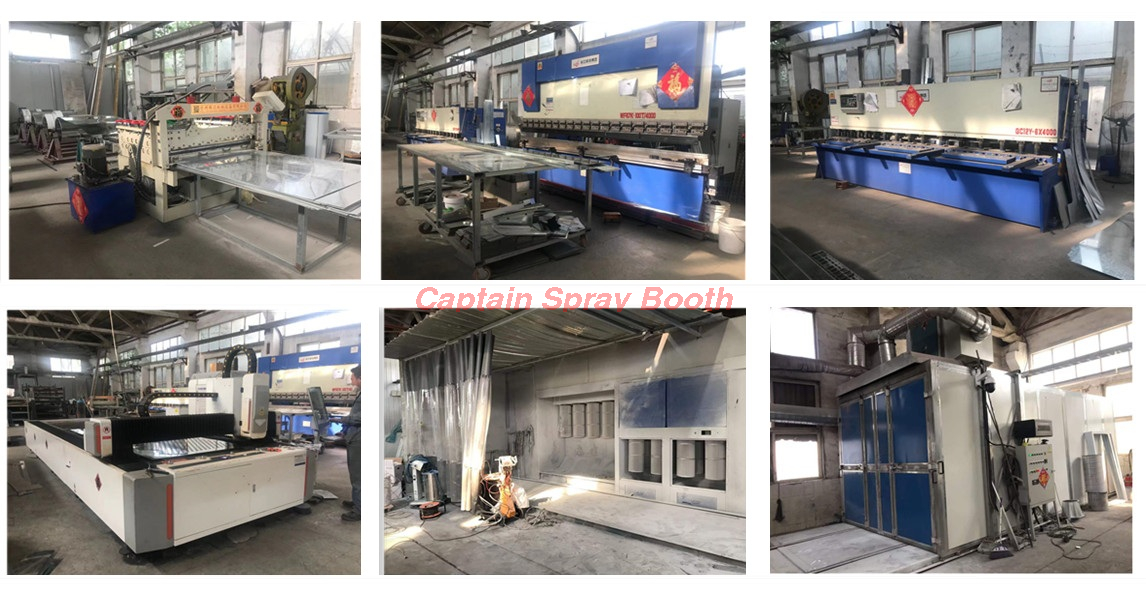

Workshop---- pictures for our workshop and stock, you can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery
Factory View
