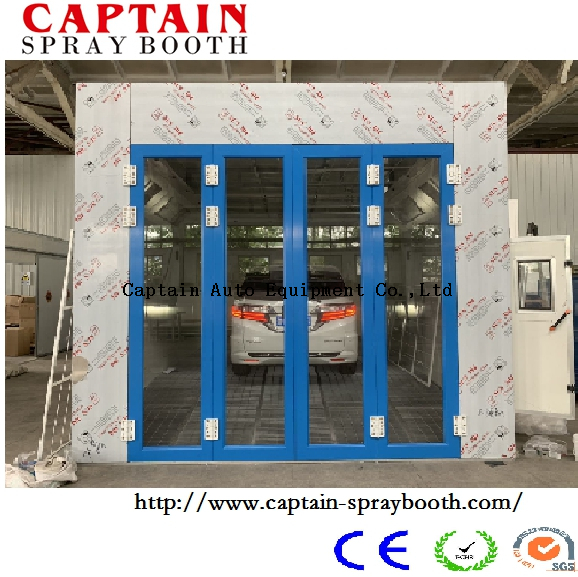

Ce Certified Car Paint Spray Booth/Painting Room

All Captain’s Commercial Vehicle (CV) spray booths come with an extensive range of cutting-edge features to guarantee a consistently brilliant colour finish and rendition, which substantially reduces cycle times and huge savings in energy output and maintenance costs.
  • EZ-YB 100R 01
  • Captain
  • 8424 8999 90
  • 6900x3900x2700mm
  • full downdraft
  • diesel burner
  • 1 set 7.5kw turbo fan
  • 1 set 7.5kw turbo fan
  • LED lights

Equipment Constituents

The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.

Main Specification:

Model NO.: EZ-YB100R

Outside Size(mm) 7000x5350x3300 Inside Size(mm) 6900x3900x2700 Front Door(mm) 3000x2600(WxH) Total Power 8kw
Basement δ=1.0mm galvanized steel for bottom coaming,  the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.5mm; 3 rows of diamond plate, 2 rows of grilles which is made of 30mmx4mm flat steel, then paint. δ=2.5mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful.
Cabin System 50mm EPS panel, double 0.326mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window.
Ventilation System 1 set 7.5kw turbo fan for supplying, air capacity is 28000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with 30mm rockwool inside, electrical or pneumatic damper, equiped with 10N Holland electrical or pneumatic actuator. 1 set 7.5kw turbo fan for air exhaust.
Ceiling  Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating.
Lighting System 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating.
Heating System Italy Riello G20 diesel burner, 200000Kcal/h. Heating exchanger is made of δ=1.2mm sus304 stainless steel by argon arc welding.
Purification System Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm,  flame retardant glass is F5. The floor filter is using filter felt for paint mist.
Electric Controlling System High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc.
Optional Wall Panel 50mm rock wool panel, with double steel 0.376/0.426mm steel, density is >=100kgs
Side Lights 20pcsx30w in vertically embedded into the wall. The light box is with powder coating.
Environmental Cabin 1x4kw centrifugal fan with floor filter and active carbon filter. in Draw-out type plate structure

Basic Draw----we can make draw according to your need and your installation place
Captain Spray Booth 800

Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.
our production, delivery

Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.
installation draw

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.


High desensity wall panel, two men stand on it, it will not bend.
spray booth--wall panel

Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.
spray booth-heat exchanger

Our control box is with SCHNEIDER parts

control box
Workshop---- pictures for our workshop and stock, you  can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery

our workshop

Factory View

our factory

Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories

Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !

Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.

Mobile  0086 136 9865 5170

The Captain name is recognised worldwide as the leader in Spray Booth technology and has become the number one supplier to the automotive aftermarket in the CHINA by providing tangible financial benefits to its customer.
Captain Industry Park,Qingdao,Shandong, China.
Tel:0086  136 9865 5170
Whatsapp: +86 136 9865 5170
Email: sales@captain-spraybooth.com
