600B
captain
12KW

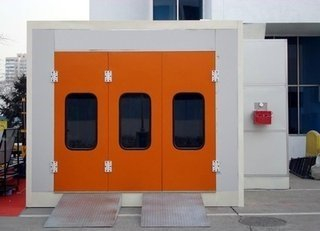

Type: Spray Booths
| Items | Spec |
| Outside Dimension | 7050×5050×3500mm(L×W×H) |
| Inside Dimension | 6900×3900×2800mm(L×W×H) |
| Main Door | 3-folds: 3000×2750mm (W×H), aluminium alloy door frame |
| Personal Door | 1-fold: 800×1900mm (W×H),aluminium alloy door frame |
| Wallboard | EPS colorful steel skin panel,75mm thick,steel 0.476mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel. |
| Basement & Floor | Complete steel assemble, height is 300mm, pave 3rows indented plates and 2rows grilles on the metal basement, 2Pcs ramps: 800×2000mm (W×L)/pc |
| Lighting System | Ceiling Lights: 8Units×3Pcs=24Pcs×40W, with electronic ballasts,power-coated light box.Side Lights: 6Units×3Pcs=18Pcs×36W, with electronic ballasts, vertically set,power-coated light box. |
| Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
| Intake Fan | 2 sets of double-intake centrifugal fans for intake air, direct drive,5.5kw each,air capacity 30000m3/h in total. |
| Extract Fan | 1 set of double-intake centrifugal fan for exhaust air, direct drive,7.5kw, air flow 20000m3/h in . |
| Number Of Air Changes (times/hour) | 290 |
| Wind Velocity At Full Load Inside The Room(M/S) | 0.3m/s |
| Heating System | 1set Riello RG5S brand diesel oil burner, maximum heat productivity is 260,000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle . |
| Maximum Working Temperature | 80 |
| Heating Rate(/min 20--60) | 4-6 |
| Filtering System | Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter. |
| Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
| Filter Efficiency | ≥98% |
| Noise(db) | ≤75 |
| Colour | Blue,red,white |
| Total power(Kw) | 21KW |
Place of Origin: Shandong, China (Mainland)
Brand Name: SK Model Number: SK-BZ
Heating System: Oil, electricity
Packaging & Delivery
Packaging Detail: Proper packing suitable for container loading.
Delivery Detail: 7days
Specifications
Burner Italy brand
CE approved car spray booth
High quality and durable use
Auto curing booth
Delivery time within 10 days
