Availability: | |
---|---|
AS7006A
captain
8424 8999 90
6900x3900x2700
full downdraft , air exhaust from grate
diesel burner, gas burner or infrared lamps
1 set 7.5kw turbo fan
1 set 7.5kw turbo fan
LED lights
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking ovenyou need .
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
Inside Dimension | 6900X3900X2700MM(LXWXH) |
Outside Dimension | 7000X5350X3400MM(LXWXH) |
Main door | 4-fold, 3200X2600MM(WXH) with heat insulation glass window, Stainless steel door |
Personal door | 1-fold, 700X2000MM(WXH) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit |
Booth System | Wall panel :EPS material, tongue and groove interlock construction, hickness: 50mm, 0.426mm steel plate |
Basement and floor:complete steel assemble, 5 rows of grids, Build-in ramp | |

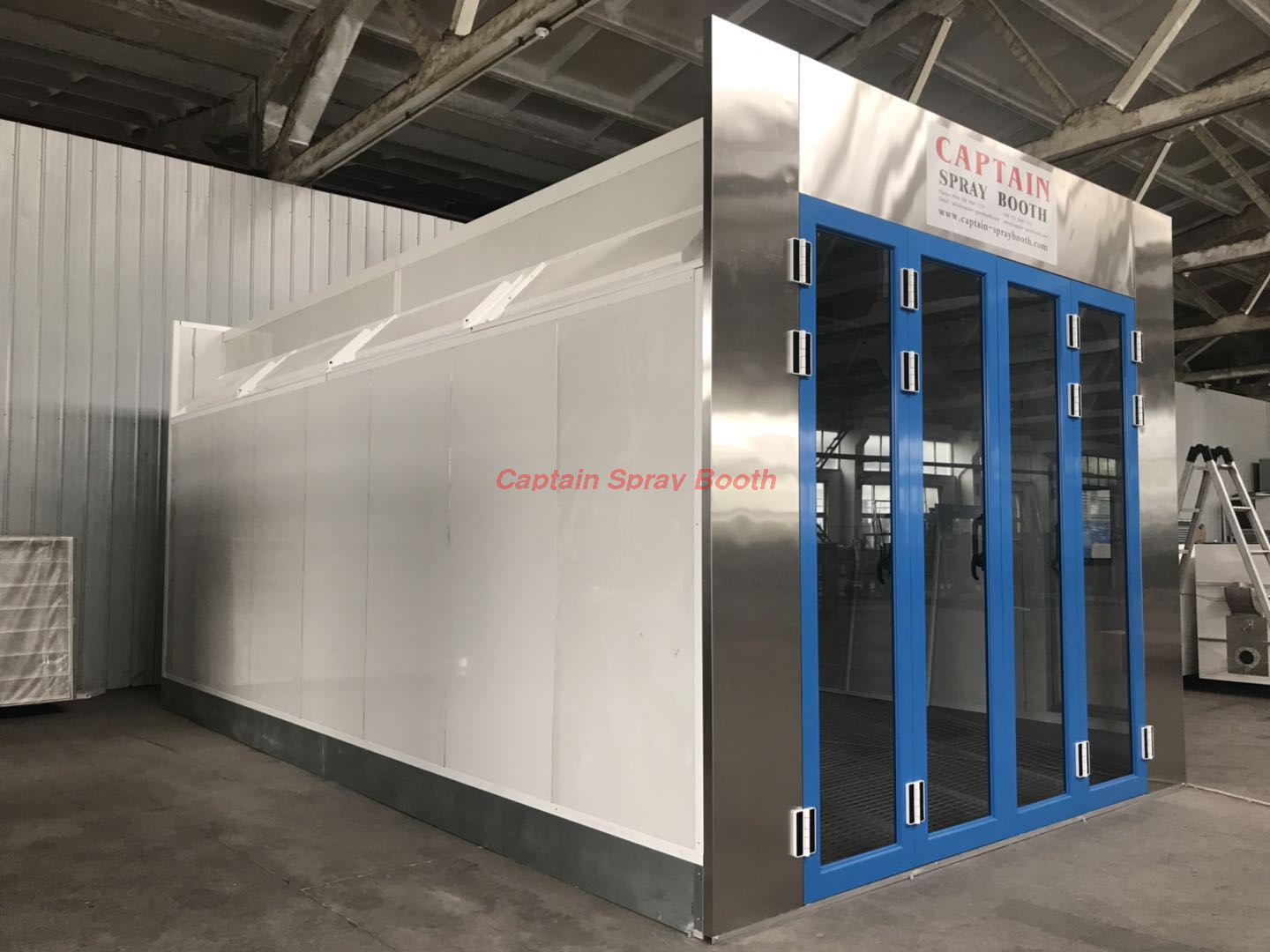

Lighting System | Ceiling light: 4Pcs X8units=32PcsX36W, OSRAM Lamp, with electronic ballasts , change light tube from outside . |
Glass | All window and light cover by ovenproof toughened glass |
Generator setting type | Side upper intake air, Side bottom exhaust air, aluminum alloy frame, coated steel |
Ventilation System | Intake fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive, air capacity:28000-30000m3/h ; Exhaust fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive, air capacity:28000-30000m3/h |
Heating system | Italian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional) |
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection, highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 90% heat exchanging rate | |
Filter system | Prefilter, high efficiency filter EU5 Fine Filters, 6 pieces (ceiling filter), floor filter, exhaust active carbon filter |
Control system | Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm, limited-temperature device, most of electrical spare part is import, C.E standard |
Total power | 16KW |

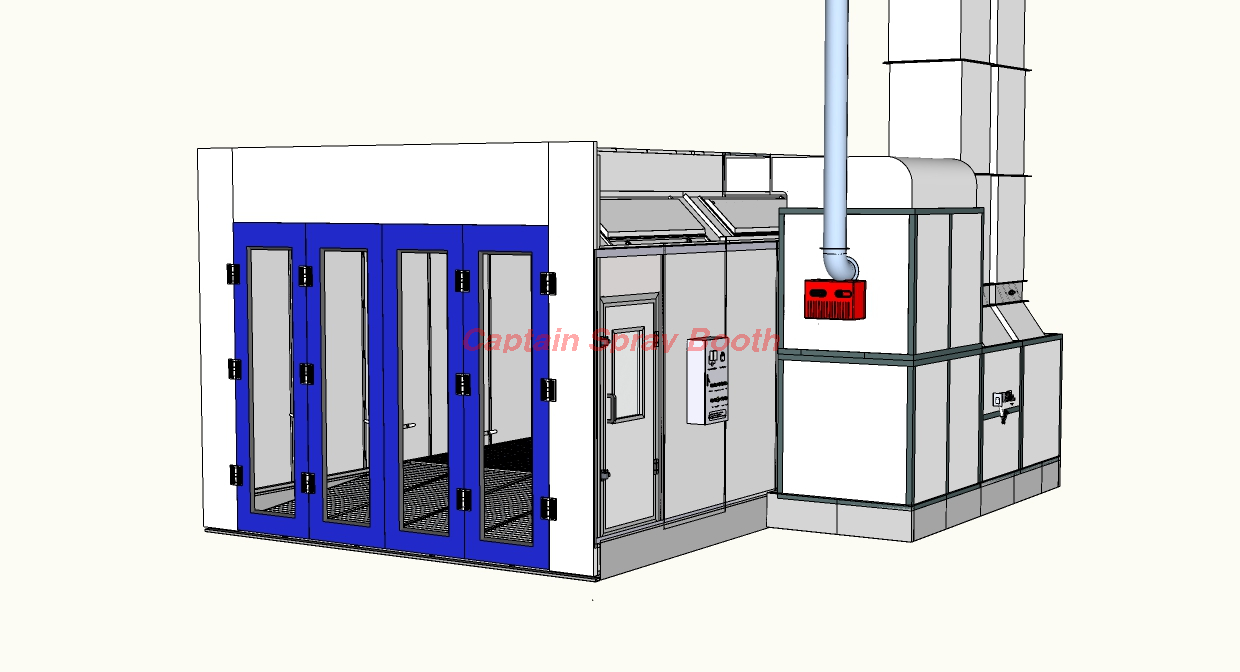

Design drawing:

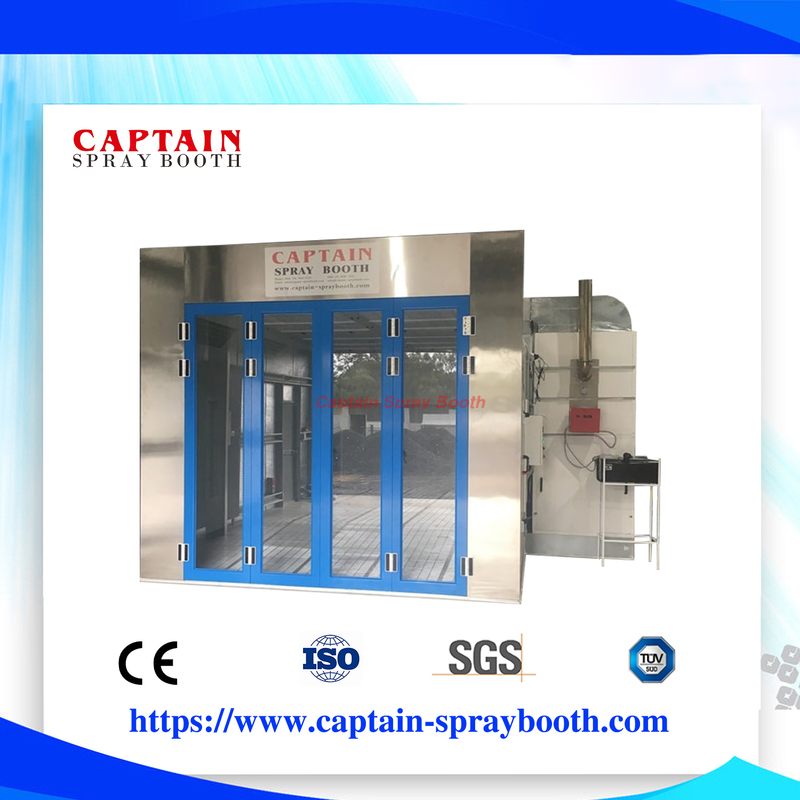

Appearance

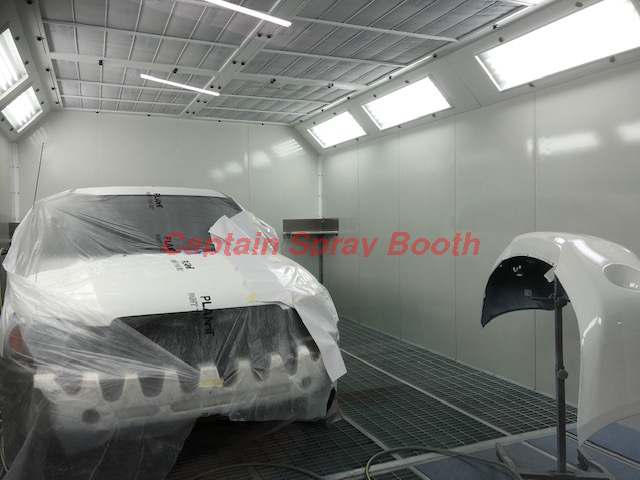

Inside view:
Air inlet and exhaust system :
High strength wall panel

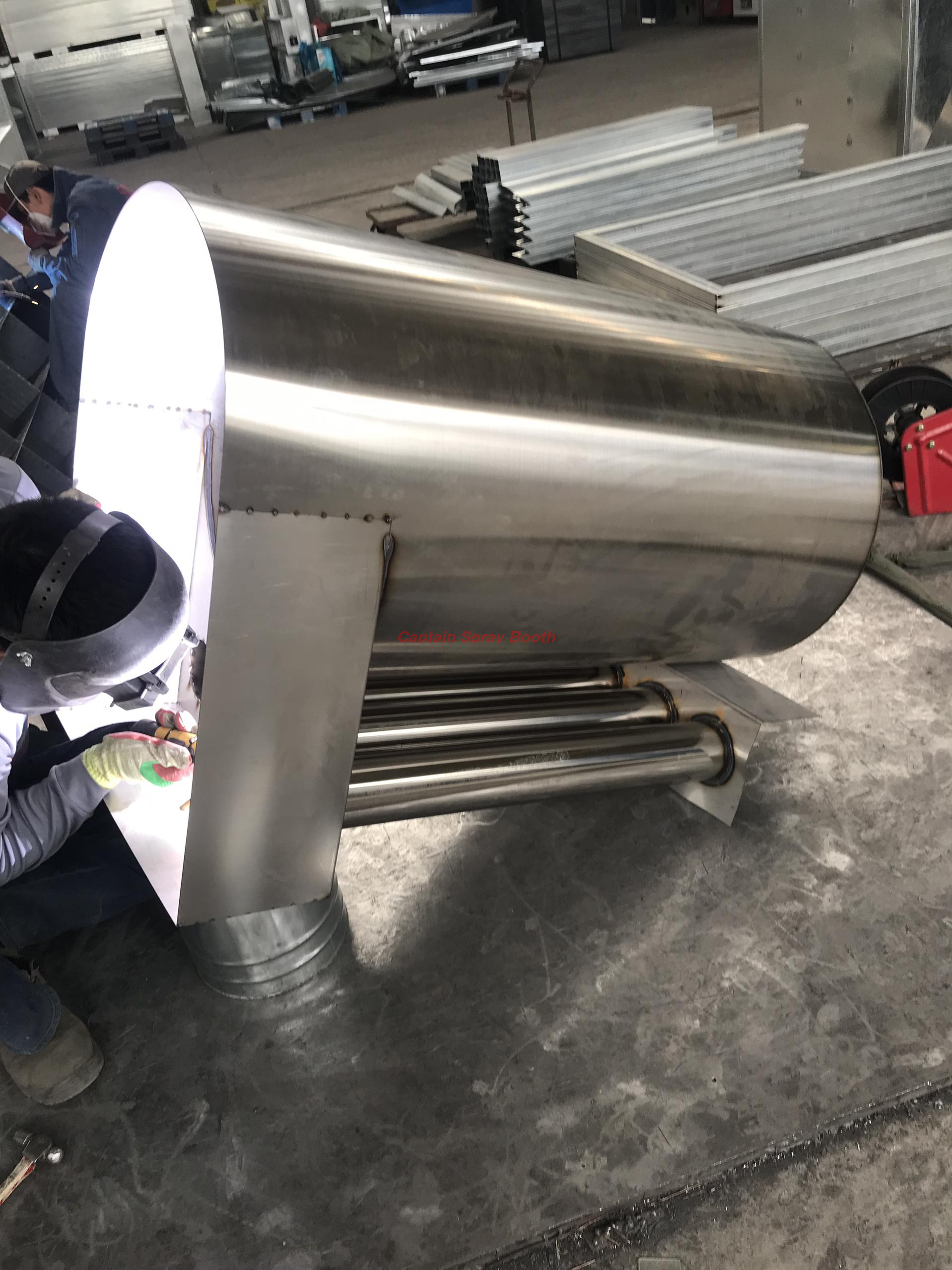

Stainless Steel heat exchanger
Control Box
Package:
Workshop:
Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
Payment term: 50% TT IN ADVANCE , 50 % before delivery |
After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
